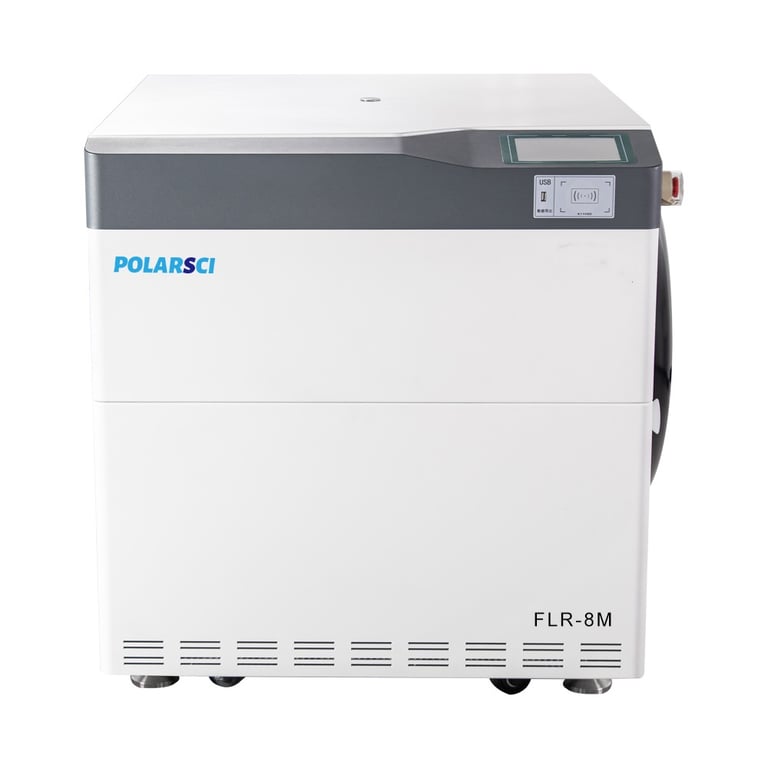

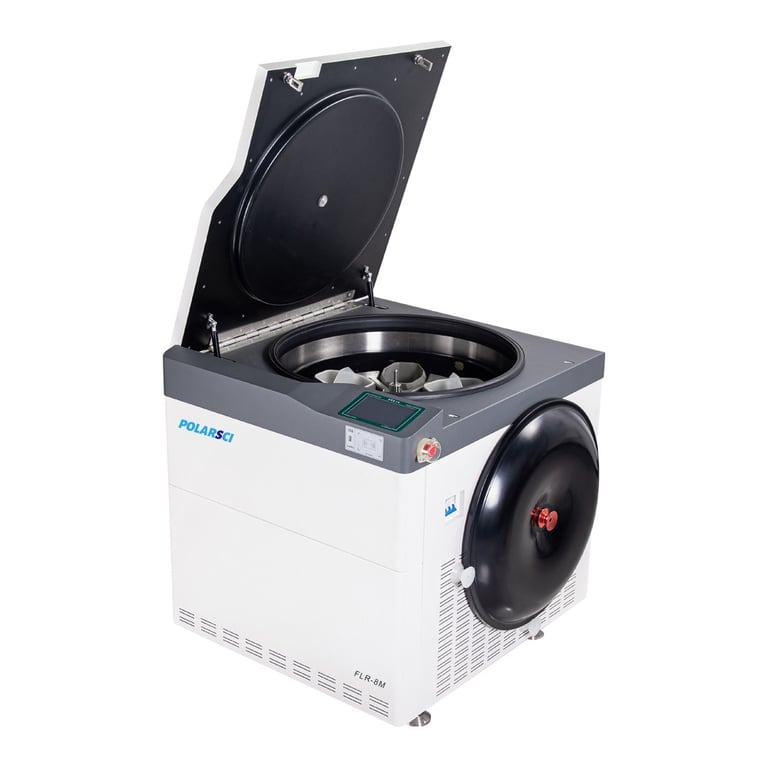

Refrigerated Low Speed Floorstanding Lab Centrifuge FLR Series

Ventilated Low Speed Centrifuge FLR Series

FLR-5M/6/6M/8M

The FLR series is large capacity refrigerated centrifuge with max capacity 6x2400ml,can run 12 blood bags or 384pcs blood tubes at a time. LCD touch screen for viewing and setting parameters,Polarsci 3.0 version operation system has more functions.

Product Descriptions

Technical Specifications

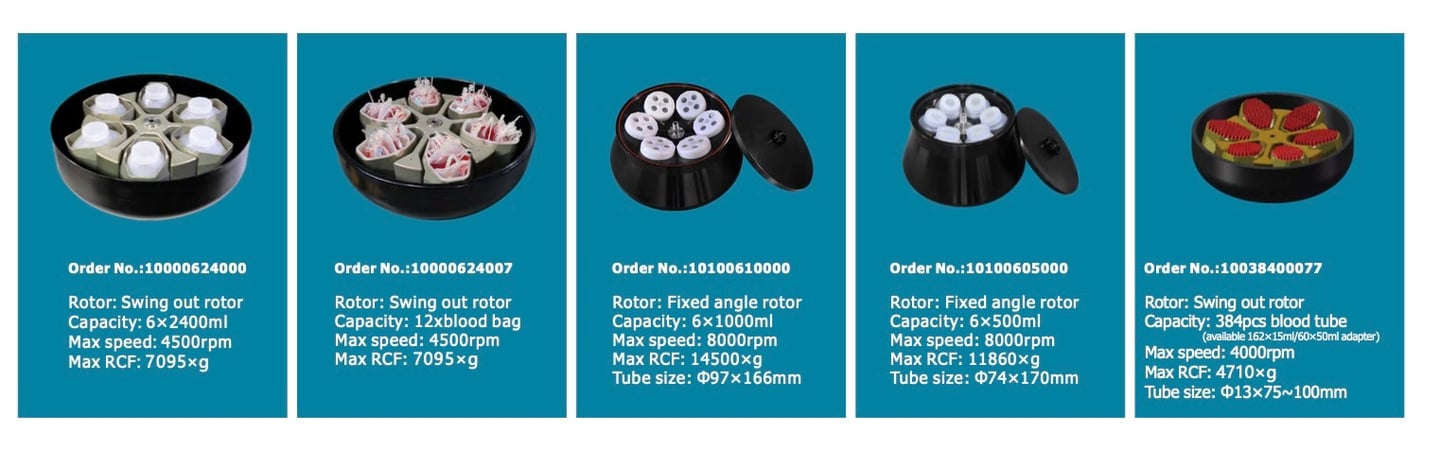

More Available Rotors

User-Friendly Functions

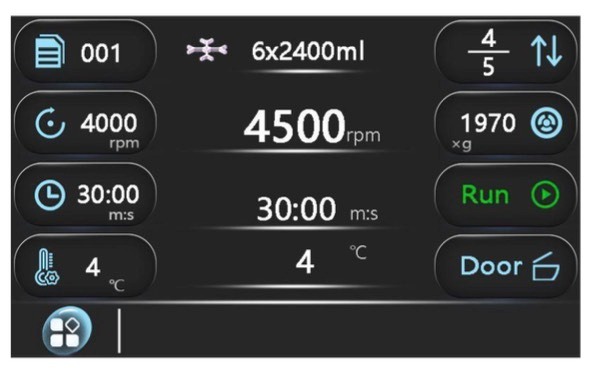

• LCD Touch Screen: Simple and clear interface for viewing and setting parameters.

• Intelligent Status Display: Shows real-time and actual values.

• Program Storage: Set and store up to 1,000 programs with password protection.

• Run Histories: Store thousands of run histories, exportable as PDF files.

• Acceleration and Deceleration: 40 levels available, with gradual speed reduction from 500 rpm to 0 rpm to prevent sample shaking.

• Curve Display: Displays speed, RCF, and temperature curves together for clear visualization of changes and relationships.

• Multi-Stage Centrifugation: Set and save up to 5-stage centrifugation programs.

• Timekeeping Modes: Offers both count up and count down modes.

• Timer Range: Programmable from 1 second to 99 hours, 59 minutes, and 59 seconds in 1-second increments.

Refrigeration:

• Imported compressor unit.

• CFC-free refrigerant.

• Heating and cooling double-loop control.

• ±1℃ high temperature accuracy.

• Temperature range from -20°C to 40°C in 1°C steps

• Temperature sensor inside the chamber.

Ensure Safety:

• Electric door lock,controlled by independent motor,with double lock.

• Emergency lid-lock release

• Lid can only be opened when completely stop running.

• Port in the lid for calibration and operation checking.

• Two hydraulic rods support the lid.

• Multi-protections such as door, overspeed, overtemperature, overpressure,overheating.

Good components:

• Motor: Variable frequency motor---stable running,maintenance free,long life.

• Housing: thick and strong steel

• Chamber: Food grade 304 stainless steel--- anticorrosion and easy to clean

• Rotor: Aluminium

RFID rotor intelligent recognition technology can instantly identify rotor specifications, max speed, max RCF, production date, usage and other information without running, which is convenient for users to manage rotors.

• Imbalance Detection:Three-axis gyroscope is used to monitor the vibration state of the running spindle in real time.

Swing Out Rotor Desgined For Full Blood Centrifugation

Rotor: Swing out rotor
Capacity: 12xblood bag， 2x450ml blood bag per buket
Max speed: 4500rpm
Max RCF: 7095×g

Warranty

• 2 years worry free warranty for the whole unit.

• 24*7 Online Technical Support

• Service Training

• Post-warranty support

Your Satisfaction is Our Priority:

At Polarsci, we're dedicated to helping your business thrive. Our team is here to guide you through every step, from selecting the right solution to seamless installation.

Power Your Success with Polarsci today!
