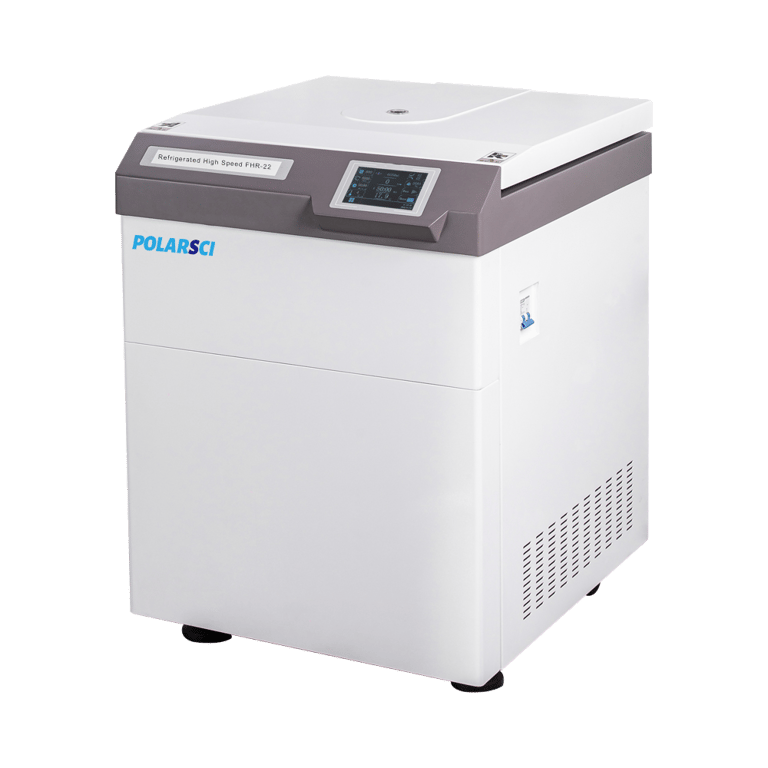

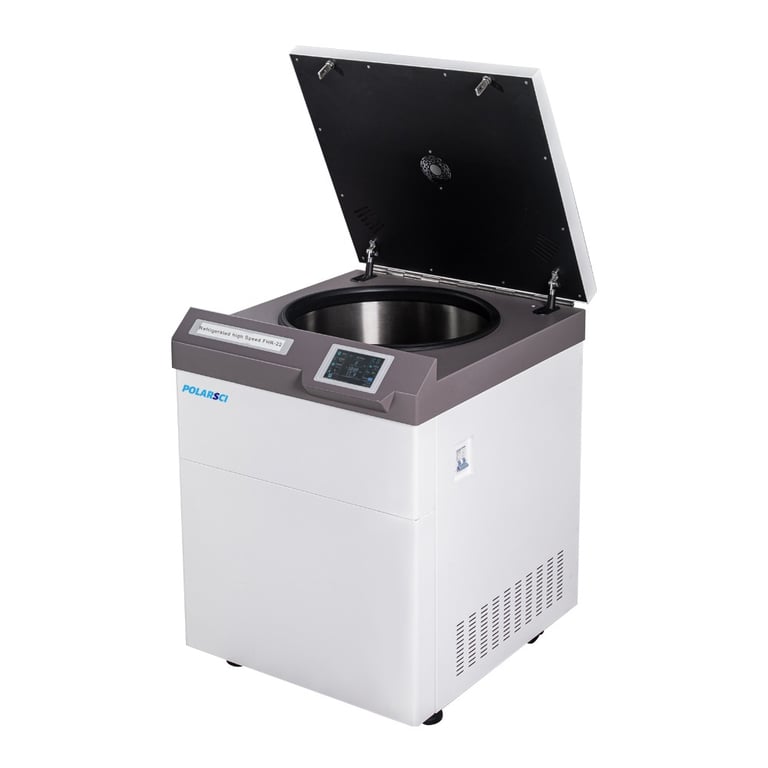

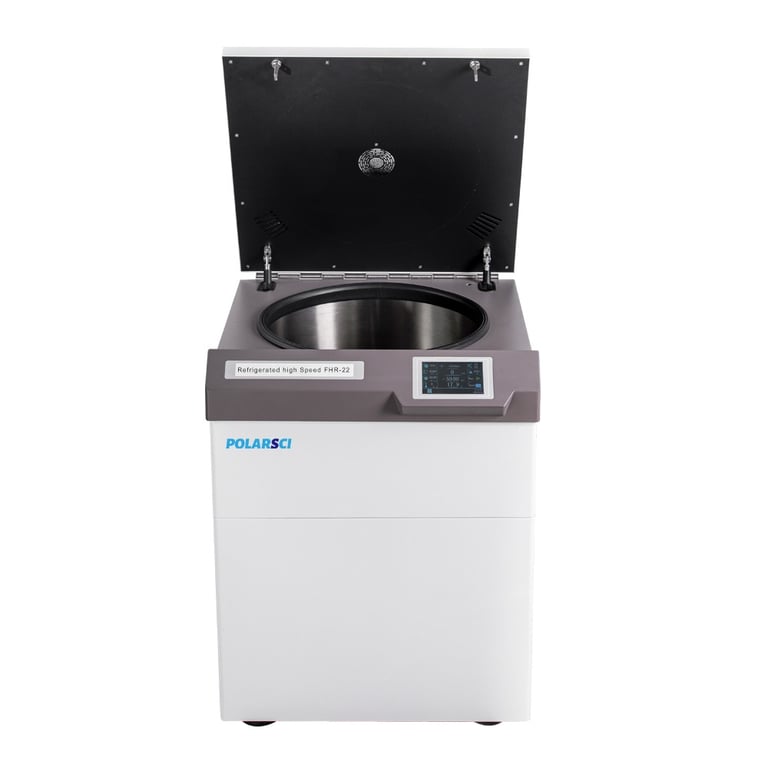

Refrigerated High Speed Floorstanding Lab Centrifuge FHR Series

Ventilated Low Speed Centrifuge FHR Series

FHR-10M/16M/21M/22M/25M

FHR-18/22

The FHR series is a multipurpose floor standing high speed refrigerated centrifuge with intelligent LCD touchscreen and digital keypad controller. Equipped with RFID rotor identification technology and three-axis gyroscope real-time monitoring technology and multiple rotors for choice to meet different centrifugal needs.

Product Descriptions

Technical Specifications

Available Rotors

User-Friendly Functions

• LCD Touch Screen: Simple and clear interface for viewing and setting parameters.

• Intelligent Status Display: Shows real-time and actual values.

• Program Storage: Set and store up to 1,000 programs with password protection.

• Run Histories: Store thousands of run histories, exportable as PDF files.

• Acceleration and Deceleration: 40 levels available, with gradual speed reduction from 500 rpm to 0 rpm to prevent sample shaking.

• Curve Display: Displays speed, RCF, and temperature curves together for clear visualization of changes and relationships.

• Multi-Stage Centrifugation: Set and save up to 5-stage centrifugation programs.

• Timekeeping Modes: Offers both count up and count down modes.

• Timer Range: Programmable from 1 second to 99 hours, 59 minutes, and 59 seconds in 1-second increments.

Refrigeration:

• Imported compressor unit.

• CFC-free refrigerant.

• Heating and cooling double-loop control.

• ±1℃ high temperature accuracy.

• Temperature range from -20°C to 40°C in 1°C steps

• Temperature sensor inside the chamber.

Ensure Safety:

• Electric door lock,controlled by independent motor,with double lock.

• Emergency lid-lock release

• Lid can only be opened when completely stop running.

• Port in the lid for calibration and operation checking.

• Two hydraulic rods support the lid.

• Multi-protections such as door, overspeed, overtemperature, overpressure,overheating.

Good components:

• Motor: Variable frequency motor---stable running,maintenance free,long life.

• Housing: thick and strong steel

• Chamber: Food grade 304 stainless steel--- anticorrosion and easy to clean

• Rotor: Aluminium

RFID rotor intelligent recognition technology can instantly identify rotor specifications, max speed, max RCF, production date, usage and other information without running, which is convenient for users to manage rotors.

• Imbalance Detection:Three-axis gyroscope is used to monitor the vibration state of the running spindle in real time.

Warranty

• 2 years worry free warranty for the whole unit.

• 24*7 Online Technical Support

• Service Training

• Post-warranty support
