Ecosaver Series ESS Line Interactive UPS Single Phase

Line interactive UPS is also used for small office and home office (SOHO) and home workstations or small servers.Inverter regulates the input voltage up or down as necessary!

Key Features

1 . Toroidal transformer design for high efficiency and low static power consumption

2 . Output with short-circuit protection settings, do not have to worry about damage to the machine because of misuse.

3 . Output voltage, battery voltage section number, charging current adjustable

4 with battery over-discharge protection, battery over-charge protection

5 . CPU design, computer interface, with self-detection function.

6 . With three-level lightning protection, all-weather protection of your equipment

7 . Multi-function alarm

8 super filter function, easy to solve the interference

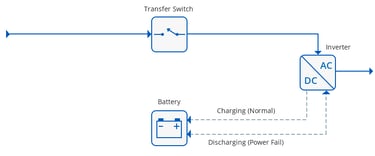

Line-interactive UPS Diagram

In this smart design, the battery-to-AC power inverter is always connected to the output of the UPS. When the input AC power is normal, the inverter of the UPS is in reverse operation and provides battery charging. Once the input power fails, the transfer switch will open and the power will flow from the battery to the UPS output.

Technical Specifications

ADVANTAGES OF LINE INTERACTIVE UPS:

• The line interactive UPS is HIGHLY RELIABILITY

• HIGHLY EFFICIENCY

• REASONABLE VOLTAGE CONDITIONING

• LOWER COMPONENT COUNT

• RUGGED DESIGN

• LOWER OPERATING TEMPERATURE

• LOWER ELECTRICITY COMPUSTION

DISADVANTAGES OF LINE INTERACTIVE UPS:

• it is impractical over 10KVA

• it requires frequent battery use in areas if the extreme voltages of distortions

• do not provide power factor corrections or frequency regulations

• No. protections against all forms of power irregularities.

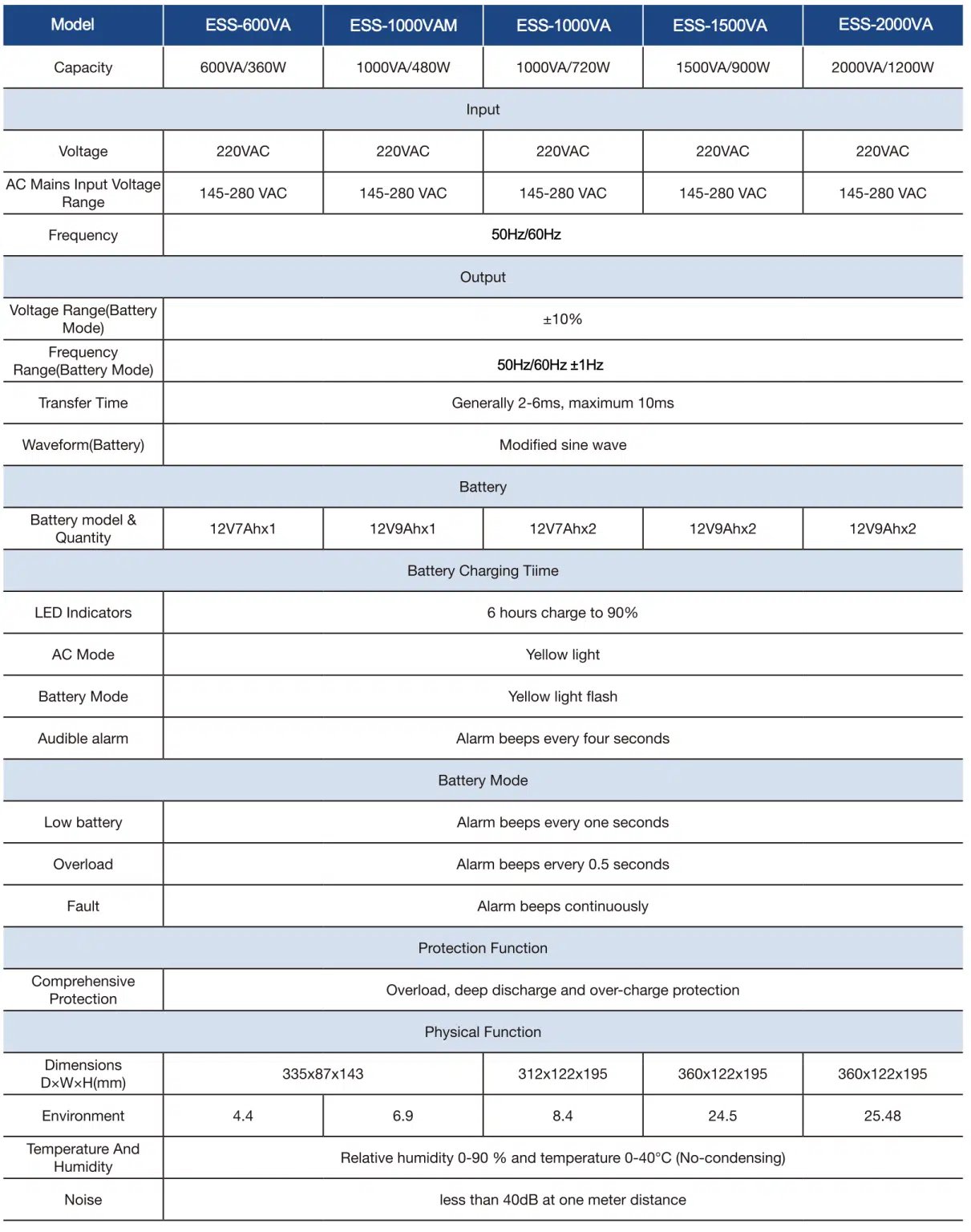

ESS-600VA~2000VA

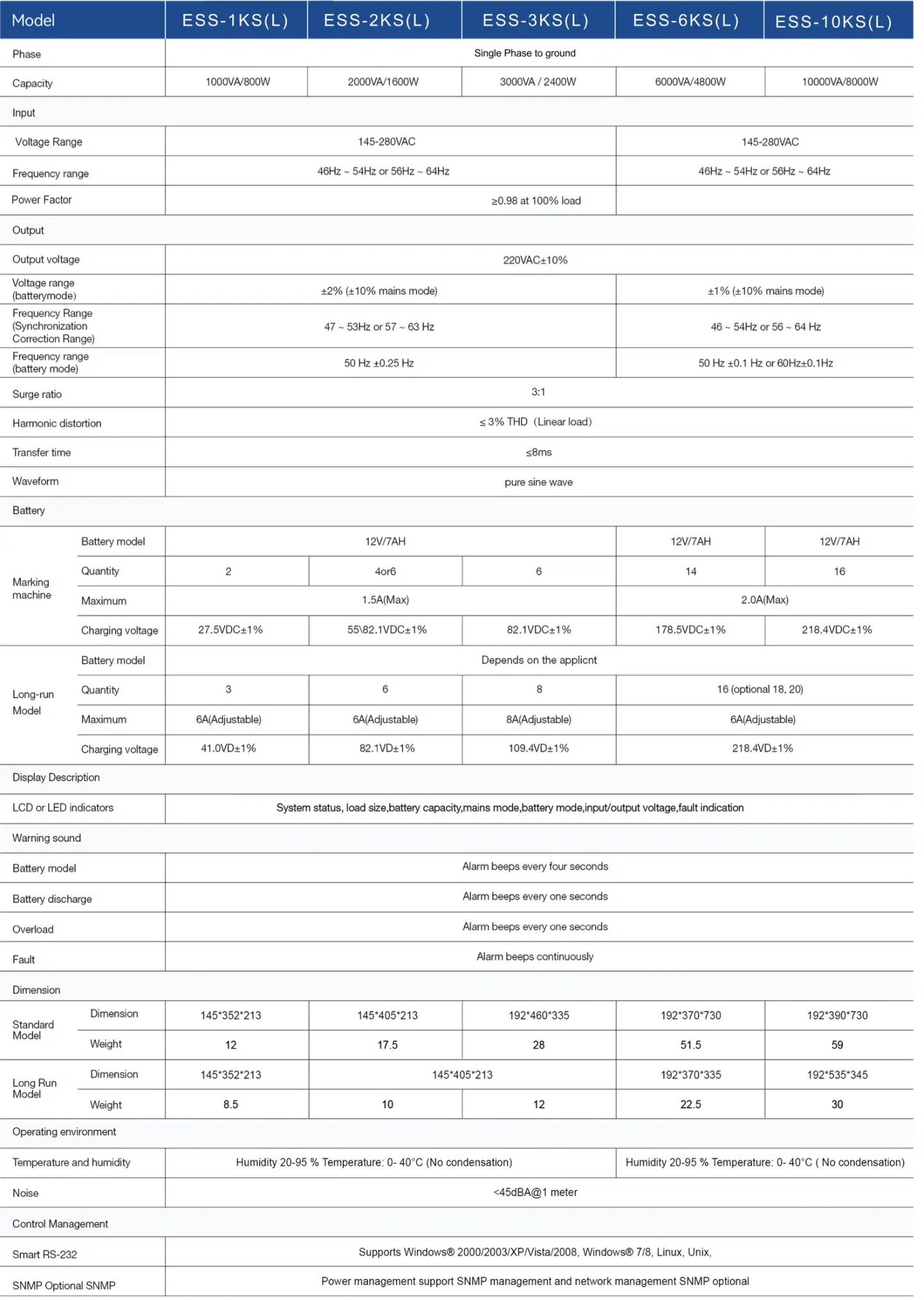

ESS-1KS(L)~10KS(L)

Warranty

• 2 years worry free warranty for the whole unit, and 1 years for the batteries.

• 24*7 Online Technical Support

• Service Training

• Post-warranty support
